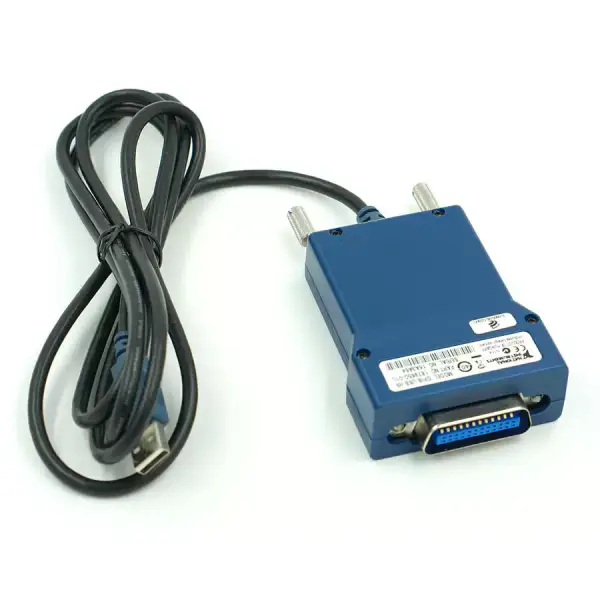

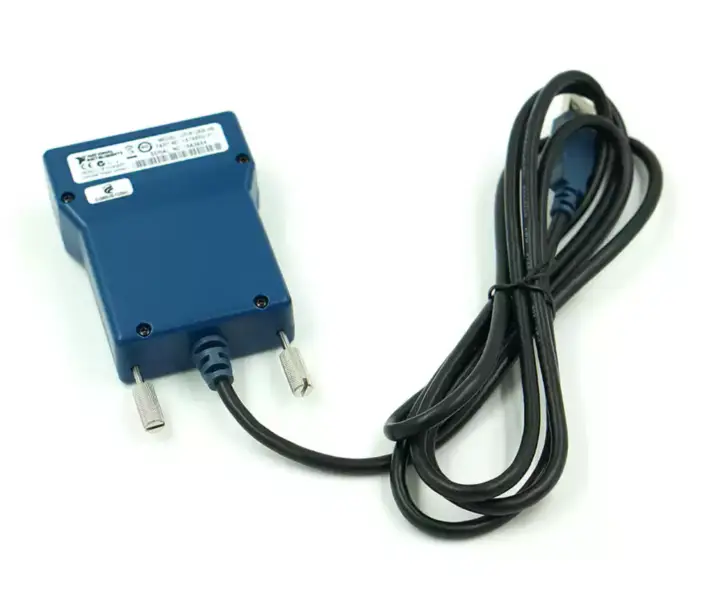

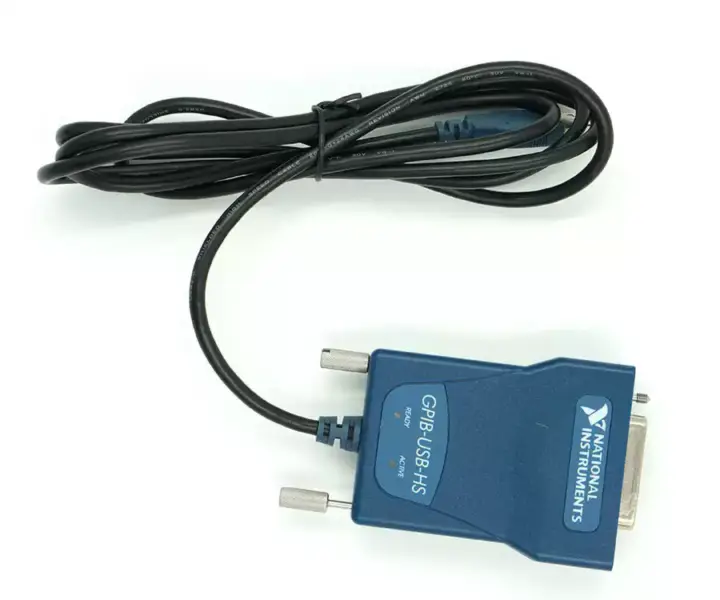

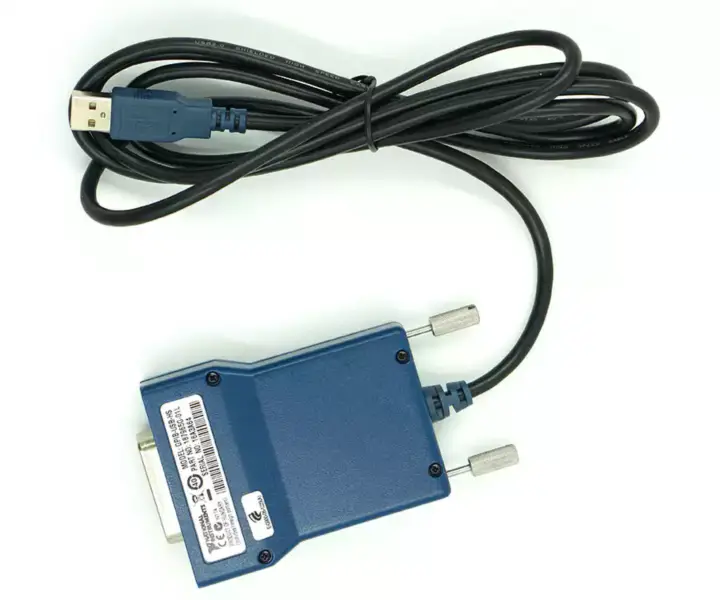

NI 778927-01 GPIB-USB-HS DAQ Card

HP GPIB Card for NI 778927-01 GPIB-USB-HS IEEE488

Specification

Type:Video & TV Tuner Cards
Brand: NI National Instruments
Part Number:778927-01
Product model: GPIB-USB-HS
Product line: GPIB
Bus type: USB
operating system / object: Linux , Windows
LabVIEW RTsupport: no
Voltage: 5 VDC
electric current: 500 mA
Power Supply: Internal power supply
comply with GPIBstandard: HS488 , IEEE 488.1 , IEEE 488 , IEEE 488.2
On board GPIB Analyzer: no
On board GPIB ASIC chip: TNT5004
Number of ports: 1
Max Baud Rate (IEEE 488.1): 1.8 MB/s
Maximum baud rate (HS488): 7.2 MB/s
Maximum cable length: 4 m
I/O FIFOThe size of the buffer: 64 B , 32 B
Maximum device connections/port: 14
length: 10.7 cm
width: 6.6 cm
height: 2.6 cm
I/OConnector: 24-pin IEEE 488
Operating temperature: 0 °C
Operating temperature: 55 °C
Package: Yes
Condition: used , tested working
