Model Number： ASD-B2-0421-B

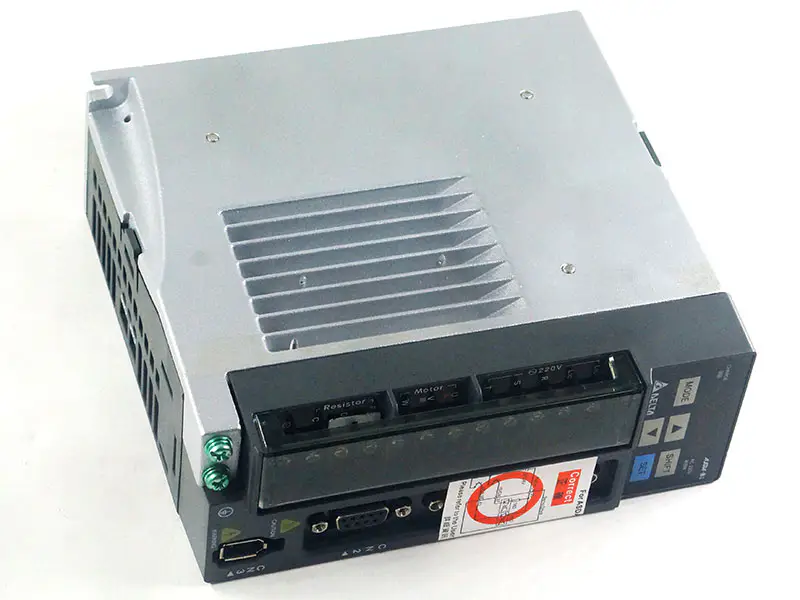

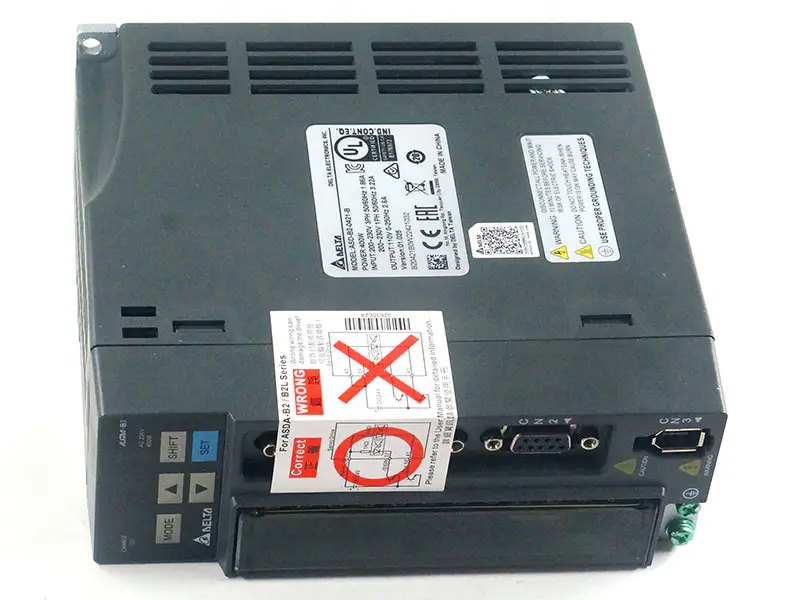

Product name： AC SERVO DRIVE
Condition： Original
Voltage： 220V 1-phase/3-phase
Power： 400W
Application： Industrial Ect
Series: B2
Model Type: B
Power Supply Phase / Voltage:
Three-phase: 170 ~ 255VAC, 50/60Hz ±5%
Single-phase: 200 ~ 255VAC, 50/60Hz ±5%
Continuous Output Current: 2.6 Arms
Cooling method: Natural Air Circulation
Encoder Resolution /Feedback Resolution：
17-bit (160000 p/rev)
Main Circuit Control: SVPWM Control
Tuning Modes: Auto/Manual
Max. Input Pulse Frequency:
Line driver: Max. 500Kpps (low speed)/Max.4Mpps(high speed) Open collector: Max. 200Kpps
Pulse Type:
Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source: External pulse train
Smoothing Strategy: Low-pass filter
Electronic Gear :
Electronic gear N/M multiple N: 1 ~ (2 26 -1)/M:1 ~ (2 31 -1) 1/50 < N/M < 25600
Torque Limit Operation: Set by parameters
Feed Forward Compensation: Set by parameters
Analog Input Command Voltage Range: 0 ~ ±10 VDC
Input Resistance: 10 KΩ
Time Constant: 2.2 us
Speed Control Range*1: 1 : 5000
Command Source: External analog signal /Internal parameters
Smoothing Strategy: Low-pass and S-curve filter
Torque Limit Operation: Set by parameters or via Analog input
Responsiveness Characteristic: Maximum 550Hz
Speed Fluctuation Rate *2(at rated speed):
0.01% or less at load fluctuation 0 to 100%
0.01% or less at power fluctuation ±10%
0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation
Torque Control Mode
Analog Command Input
Voltage Range:0 ~ ±10 VDC
Input Resistance: 10 KΩ
Time Constant: 2.2 us
Command Source: External analog signal / Internal parameters
Smoothing Strategy: Low-pass filter
Speed Limit Operation: Parameter Setting or via Analog input
Analog Monitor Output: Monitor signal can set by parameters (Output voltage range: ±8 V)
Communication Interface: RS-232/RS-485
