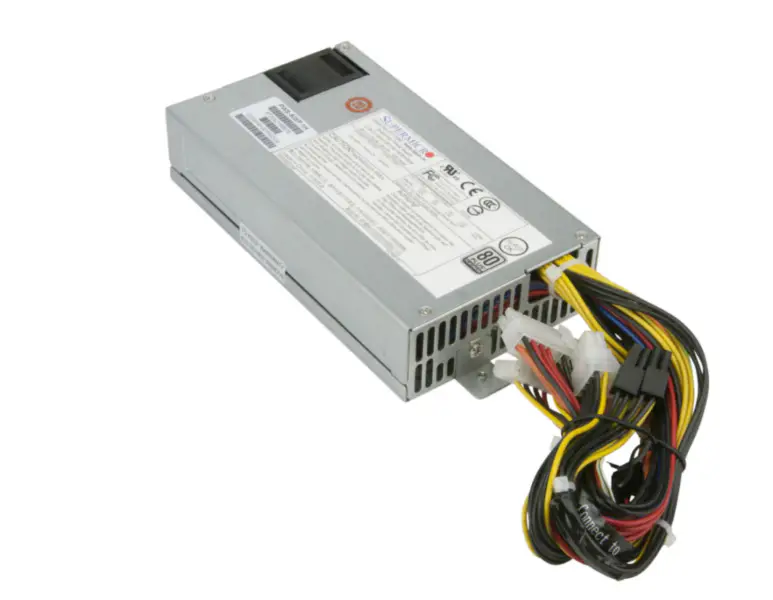

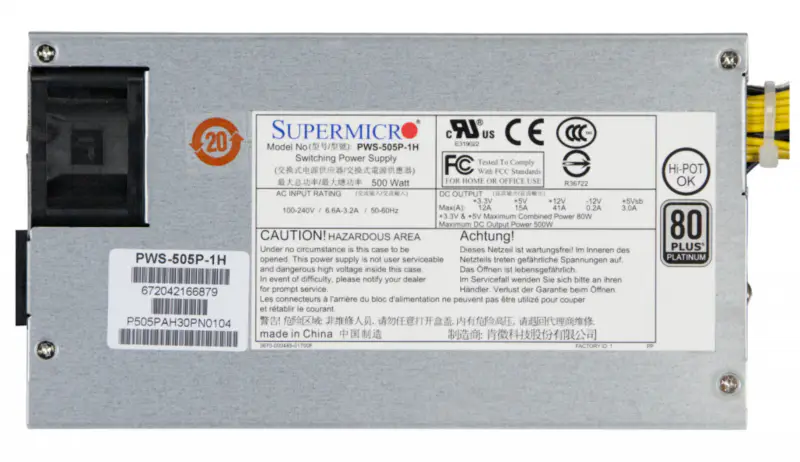

Supermicro PWS-505P-1H Power Supply

Name: Supermicro PWS-505P-1H Power Supply
SKU: EMP0071665
Price: 120 USD
Availability: InStock

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

Specifications

Total Power Output	750W
Type	Module
Type of Power Supply	Power Supply
Form Factor	1U
Dimension (W x H x L)	73.5 x 40 x 203mm
+5V	N/A
+12V	62.5A
+3.3V	N/A
5V Standby	N/A
Input Voltage Range	100-127Vac; 200-240Vac
Input Frequency Range	50-60Hz
Input Current Range	9.5A; 4.5A
Output Type	Gold Finger (25 Pair Connector)
8Pin / 4Pin (12V) Connector	N/A
PFC	Yes
Voltage / Current	Yes
Energy Efficiency	94% Peak
80 Plus Certification	80 Plus Platinum
Validated Systems	SSG-6129P-ACR12N4L, SYS-1028U-E1CR4+, SYS-1028U-E1CRTP+, SYS-1028U-TNR4T+, SYS-1028U-TNRT+, SYS-1028U-TNRTP+, SYS-1028U-TR4+, SYS-1028U-TR4T+, SYS-1028U-TRT+, SYS-1028UX-CR-LL1, SYS-1028UX-CR-LL2, SYS-1028UX-LL1-B8, SYS-1028UX-LL2-B8, SYS-1028UX-LL3-B8, SYS-1029U-E1CR4, SYS-1029U-E1CR4T, SYS-1029U-E1CR25M, SYS-1029U-E1CRT, SYS-1029U-E1CRTP, SYS-1029U-E1CRTP2, SYS-1029U-TR4, SYS-1029U-TR4T, SYS-1029U-TR25M, SYS-1029U-TRT, SYS-1029U-TRTP, SYS-1029U-TRTP2, SYS-1029UX-LL1-C16, SYS-1029UX-LL1-S16, SYS-1029UX-LL2-C16, SYS-1029UX-LL2-S16, SYS-1029UX-LL3-C16, SYS-1029UX-LL3-S16, SYS-6018U-TR4+, SYS-6018U-TR4T+, SYS-6018U-TRT+, SYS-6018U-TRTP+, SYS-6019U-TN4R4T, SYS-6019U-TN4RT, SYS-6019U-TR4, SYS-6019U-TR4T, SYS-6019U-TR25M, SYS-6019U-TRT, SYS-6019U-TRTP, SYS-6019U-TRTP2
Validated Chassis	CSE-119UTS-R751P-T, CSE-819UTS-R751P-T
