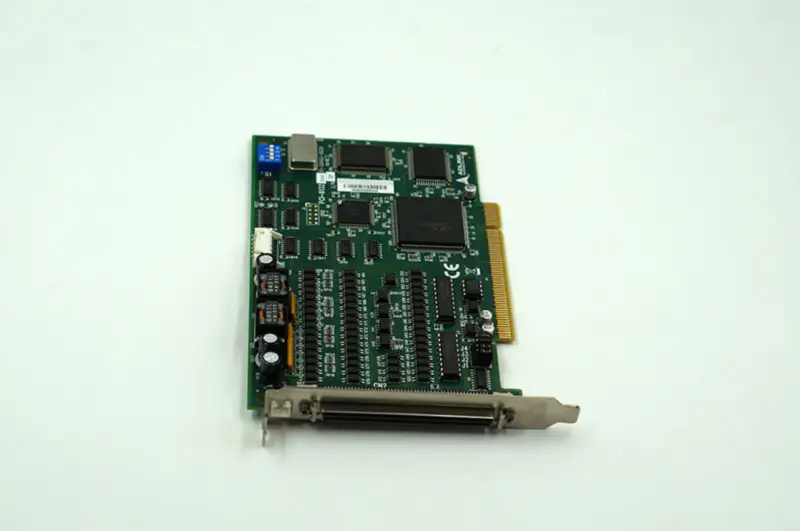

ADLINK PCI-8132 DAQ Card

Specification for National Instruments PCI-8132 data acquisition card used item

Specifications

Brand: ADLINK
Model Number: PCI-8132
Pulse output options: OUT/DIR, CW/CCW
Number of Axes: 2
Pulse Output Rate: 0.03 pps to 2.4 Mpps programmable
Pulse Command Output: DIR/OUT, CW/CCW
Max. Acceleration Rate: 91 Mpps2
Speed Resolution: 16-bit
Encoder Input Rate: 2.4 MHz @ 3 M cable
Encoder Counter Resolution: 28-bit
Positioning Range: -134,217,728 to +134,217,727 pulses (28-bit)
Max. Number of Cards in One System: 12
Motion Interface I/O Signals
Position Latch Input Pin: LTC (1 kHz for continous triggering)
I/O Pin: Differential and 2500 VRMS optically isolated
Incremental Encoder Signals Input Pin: DIR/OUT, EA/EB
Encoder Index Signal Input: EZ
Mechanical Limit Switch Signal Input Pin:±EL, ±SD, and ORG
Servomotor Interface I/O Pin: INP, ALM, ERC
General DO Pin: SVON
General DI Pin: RDY
Pulser Signal Input: PA and PB
Simultaneous Start/Stop Signal I/O Pin: STA and STP
General-purpose I/O: 16-CH input & 16-CH output
Channel number: 32-CH
Entry-level 2-axis: Yes
Package:Antistatic Package
Condition: Used, Tested
